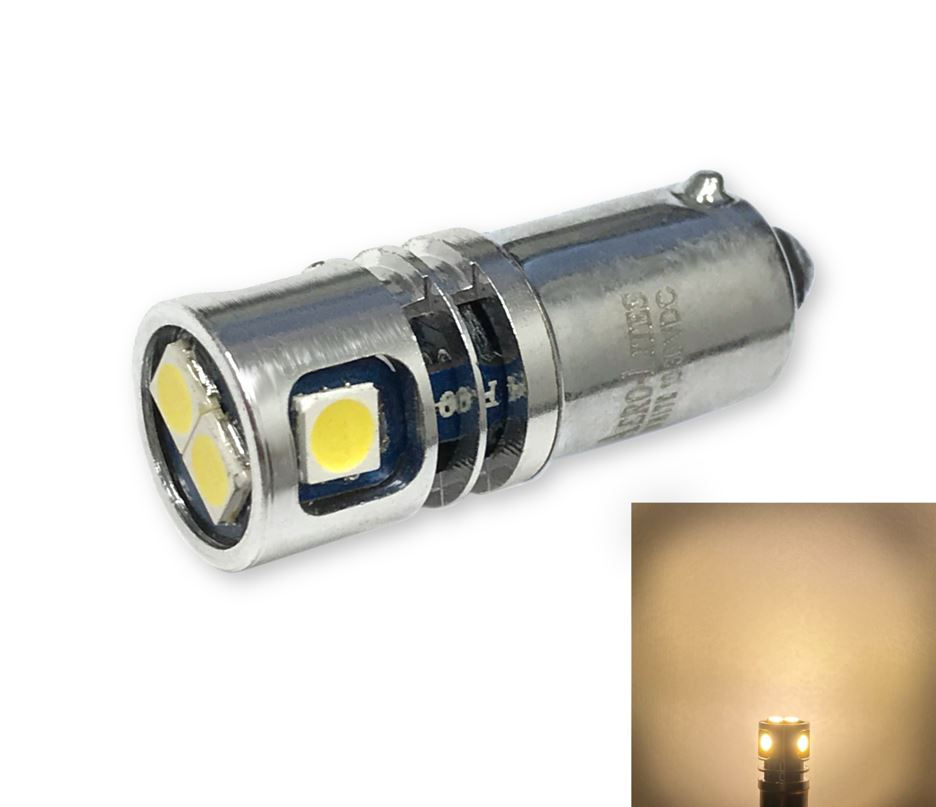

Premium LED replacement for virtually all "tube shaped" BA9S miniature bayonet bulb base light bulbs with a voltage rating from 12V up to 28V. Compatible with both AC and DC circuits. This is our brightest LED Miniature Bayonet Base solution. At an incredible 220+ Lumens, this is a many times brighter than the original incandescent bulb it replaces.

Save 10% by ordering 10-pack

Only dimmable with "PWM" dimming controls
If you require dimming for your application and want to retain your OEM dimmer, please order our dimmable LED:
14VDC Dimmable Click Here
28VDC Dimmable Click Here

SPECIFICATIONS:
Certifications: RoHS, CE
Base Type: BA9s (Miniature Bayonet, Single Contact)
Cover Type: T3-1/4
Voltage: 10-30 volt AC/DC
Wattage: 1.82watts
Current draw: 130mA @ 14-volts
Lumens: 220
Polarity Sensitive: NO
Dimmable: YES (PWM drivers only)
Beam Angle: 360 degrees
Replaces bulb codes:
12VDC: 1247, 1414, 1416, 1813, 1815, 1816, 1889, 1891, 1892, 1893, 1895, 1895R, 1895A, 216, 293, 356, 363, 3886X, 3893, 57, 57R, 6253, 64111, 64113, 64115, 756
28VDC: 1820 , 1495 , 1495X , 313 , MS25231-313 , 1829 , 1864 , 757 , 1437 , 1843, 1819 , 1873
